stainless steel IBC tank
Product Features
The container inside the stainless steel ton barrel is made of stainless steel material,which has high strength,corrosion resistance,and good hygiene.Adding an external metal frame makes it safer and more reliable.Economy:Using container packaging can significantly reduce production,storage,transportation,and operating costs.Save a lot of manpower and material resources.Compared to traditional packaging,storage can save up to 35%of space,and loading and unloading can be done by both vehicles,reducing the many troubles of manual handling.

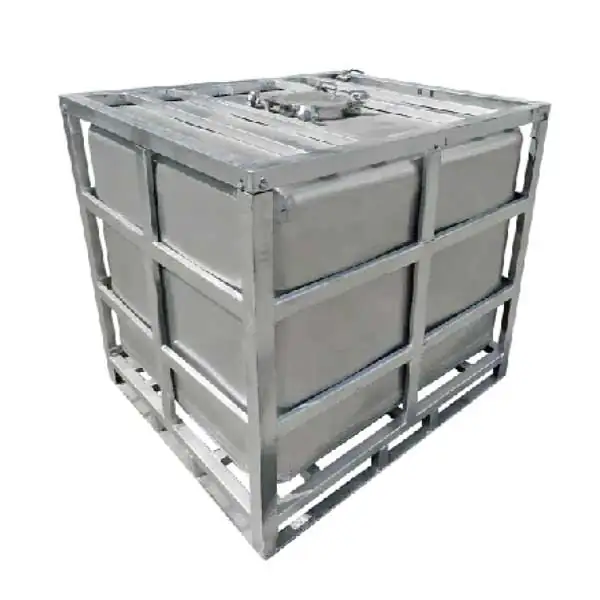

1.The outer frame is made of hot-dip galvanized metal material,and the inner container is made of stainless steel 304 material.The barrel body adopts a rounded corner transition,and there should be no sanitary dead corners inside.The welds are treated and smoothed.

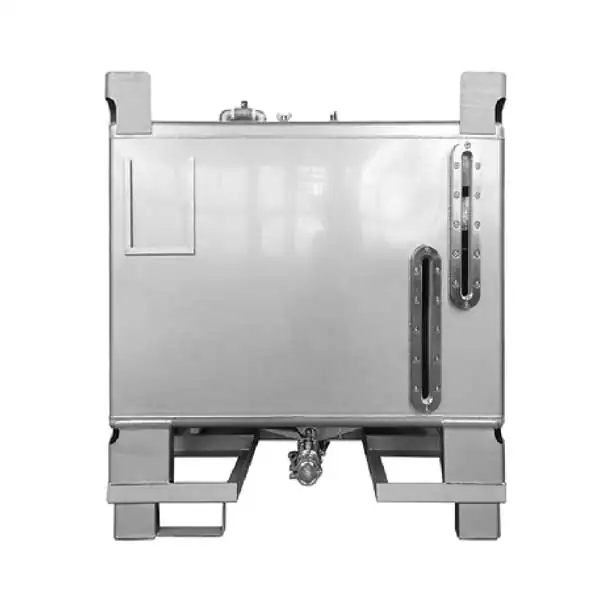

2.The design of the square plug structure facilitates forklift loading and unloading operations.
3.Stackable, more efficient in saving space.
4.Can protect stored items from external impacts, pressure, temperature, direct sunlight, and other injuries.
5.The bottom sloping design can avoid residual materials inside the tank and facilitate the discharge of stored items.
6.Can be cleaned under high temperature and pressure, maintaining a clean state is beneficial for long-term use.
7.The product has durability and can be reused repeatedly.
8.The product has corrosion resistance and can be recycled, which is beneficial for protecting the environment.
9.It can be designed and manufactured based on the characteristics of the stored items.
2.The design of the square plug structure facilitates forklift loading and unloading operations.
3.Stackable, more efficient in saving space.
4.Can protect stored items from external impacts, pressure, temperature, direct sunlight, and other injuries.
5.The bottom sloping design can avoid residual materials inside the tank and facilitate the discharge of stored items.
6.Can be cleaned under high temperature and pressure, maintaining a clean state is beneficial for long-term use.
7.The product has durability and can be reused repeatedly.
8.The product has corrosion resistance and can be recycled, which is beneficial for protecting the environment.
9.It can be designed and manufactured based on the characteristics of the stored items.
Application Scope
Technical
| Name | Stainless steel ton bucket |
|---|---|
| Product Number | YC01 |
| Approved weight（Kg） | 110±2 |
| Nominal capacity（L） | 1000 |
| Dimensions（mm） | 1200X1000X1150（±5） |
| Maximum allowed density（g/cm³） | 1.9 |
| Maximum permissible weight（Kg） | 1900 |
Technical specifications of containers, frames and accessories:
| Inner container： | Frame： | ||
|---|---|---|---|
| Material | 304 | Material | Galvanizing |
| Manufacturing method | Bending, welding | Processing methods | Bending, welding |
| Weight（Kg） | 70±2 | Tray： | |
| Length（mm） | 1140±5 | Processing methods | Die stamping and welding |
| Width（mm） | 935±5 | Pallet height（mm） | 120 |
| High（mm） | 975±5 | Fork hole distance（mm） | 900 |
| Filling diameter（mm） | 155±2 | Fork hole height（mm） | 90 |
| Drain valve： | Inner container cover： | ||
| Type | DN50 ball valve | Material | 304 |
| Material | 304 | Cover seal material | Rubber |
| Seal | Rubber | Exhaust valve material | 304 |
| Inner diameter（mm） | 50 | Exhaust valve size | 1/2 |
Production and processing equipment
